Country of Origin : Malaysia

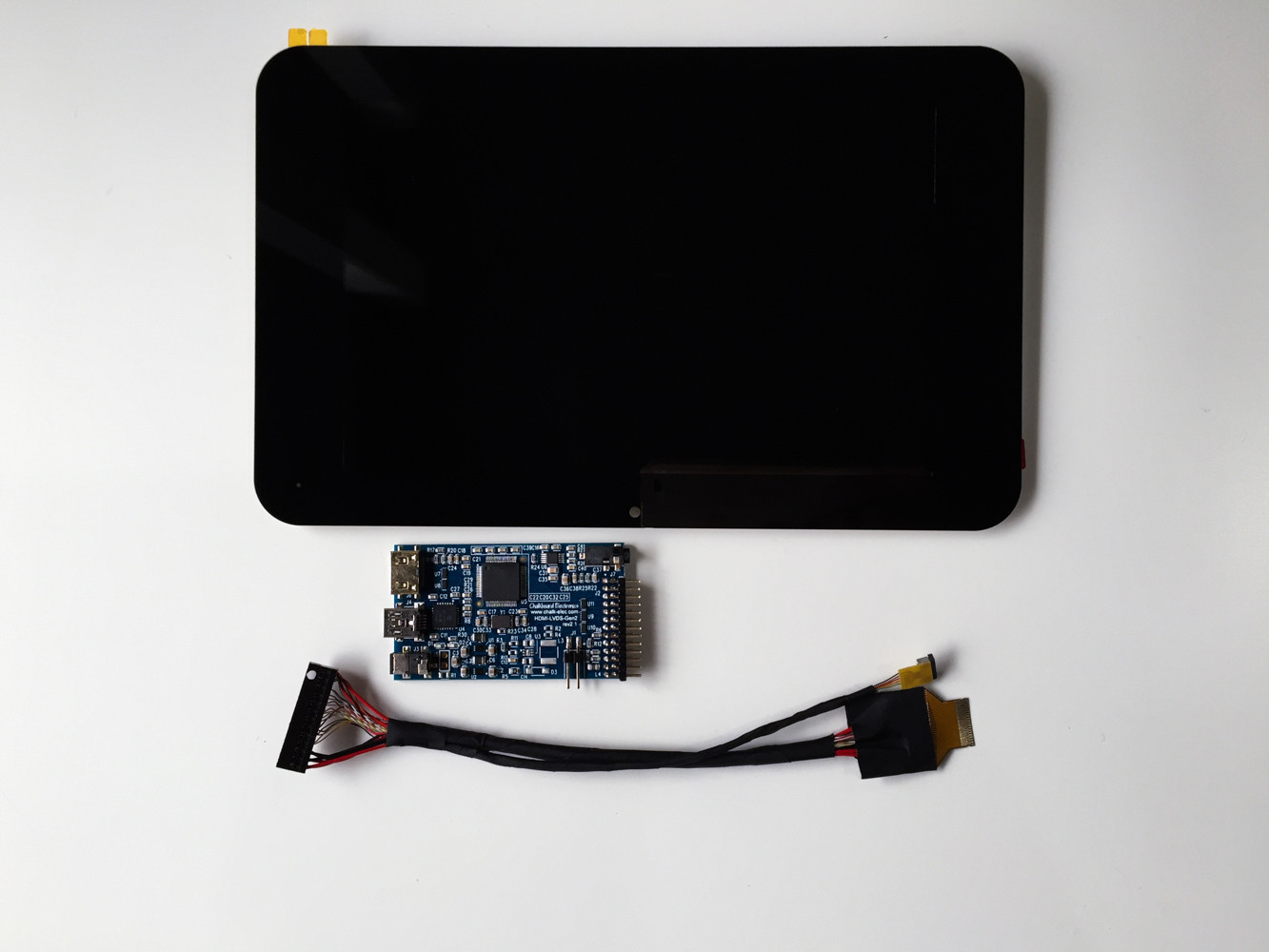

This product is a NEW generation of our popular 7" black frame universal HDMI LCD with capacitive multi-touch

Features:

• easy installation – just connect and it will work
• mini-HDMI input accepts any resolution up to 1920x1080 (FullHD), native resolution is 1280x800
• slim-profile power connector (OD=2.6mm, ID=0.65mm, positive central pin)
• dedicated hardware PWM for backlight control with 1024 levels
• signal lines protection for HDMI and LVDS ports
• mini USB connector for touchscreen with HID - driver-less single touch (installed by default), and multi-touch (available with firmware update) with additional driver
• audio engine provides decoding of HDMI stream audio and outputs it to standard 2.5mm audio connector
• external ambient light sensor for automatic brightness control
• internal LVDS scaler allows to get HDMI with any special settings from virtually any HDMI source, like RaspberryPi, Beagleboard/Pandaboard/new Beaglebone, Hackberry, Odroid, Cubox, mk802 and others Android stick clones, Gooseberry, Nitrogen/Sabre, OLinuXino, normal PC/notebook, video players, etc.

Display specifications:

• Display: 7” with IPS technology
• Native resolution: 1280x800 pixels
• Aspect ratio: 16:10 (widescreen)
• Display colors: 18M (24-bits color)
• Active area: 152mm (H) x 95.5mm (V)
• Surface treatment: 6H glass, Glare
• Weight: 110 grams
• Input voltage: 5V DC
• Operating temp: -10C … +70C
• Storage temp: -30C … +80C
• Power consumption: 3.1W (typ)
• Brightness: 400 cd/m2 (nits)
• Contrast ratio: 800:1
• Viewing angle: 89 deg (all directions)
