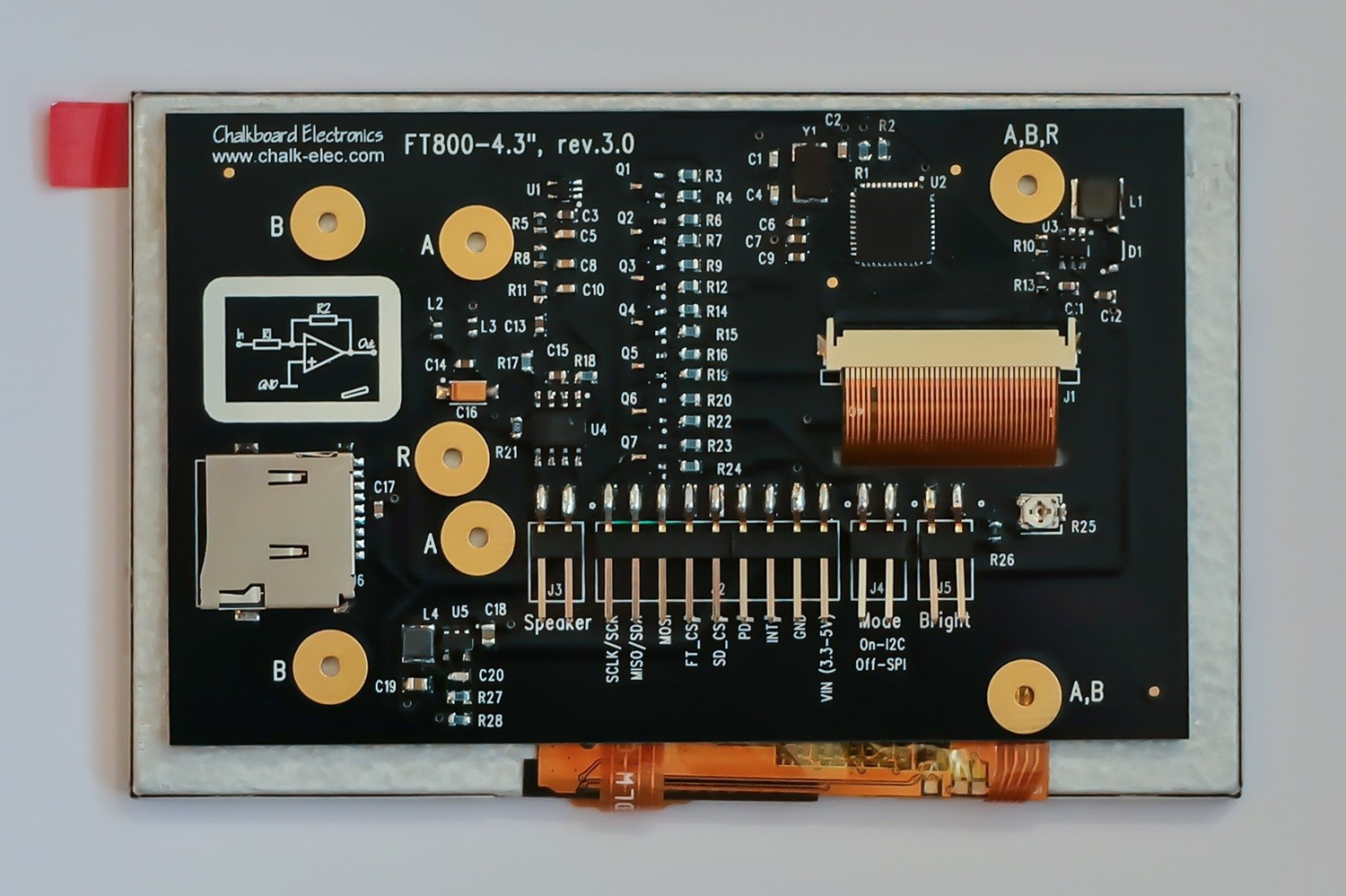

Features:

• based on innovative FT800 chip from FTDI
• 4.3", resolution: 480x272 px, resistive touchscreen
• targeted to low-end embedded development platforms, like Arduino, LaunchPad, ST Discovery, mbed, etc.
• fully integrated solution - no external boards and cables
• slim design (<8 mm thickness including electronic and connectors)
• easy installation – just connect and it will work
• serial interface (I2C or SPI)
• 3.3V and 5V logic level compatible
• MicroSD card for texture and picture storage
• can be powered from 3.3V or 5V power supply
• FT800 audio engine
• flexible backlight brightness control

Display specifications:

• Display: 4.3” full-color TFT
• Native resolution: 480x272 pixels
• Aspect ratio: 16:9 (widescreen)
• Display colors: 262K (6-bits per color)
• Active area: 95mm (H) x 54mm (V)
• Surface treatment: Hard-coating (3H) glass, Anti-glare
• Weight: 70 grams
• Input voltage: 3.3V-5V DC
• Operating temp: -20C … +70C
• Storage temp: -30C … +80C
• Power consumption: 1W (max)
• Brightness: 350 cd/m2 (nits)
• Contrast ratio: 600:1
• Viewing angle: 75 deg (all directions)

Available video:

See in action

How to assemble

(to be added)

1. Pinout diagram

2. Schematic

3. Gerbers

4. Code examples
